RAS | MiniBendCenter 79.05 | 2015 | Buigmachine | Kantbank

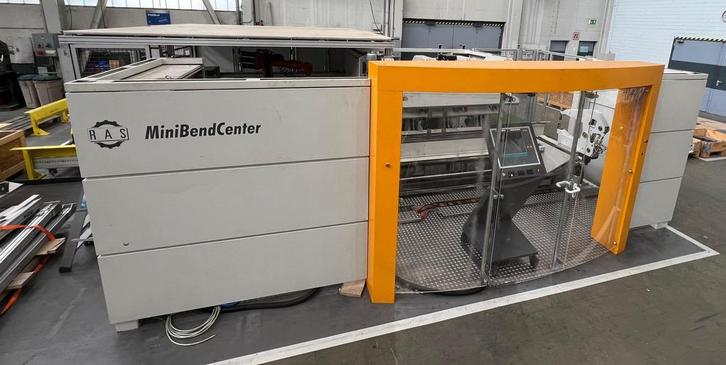

Refurbished RAS MiniBendCenter 79.05

Technical data:

• Board length: 50–600 mm
• Board width: 40–600 mm
• Sheet thickness max. (400 N/mm²) depending on tool: 3,0 mm
• Upper cheek stroke max: 500 mm
• Smallest leg height Standard value depends on tool: 5 mm x s
• Maximum leg height: 127 mm
• Weight of bending cell: 10 tons
• Weight of cladding and electrics: ca. 2027 kg
• Weight of machine elements: ca. 945 kg
• Motor operation: 400V, 50/60 Hz, 3-Ph
• Year of construction: 2015
• Condition: refurbished - good used condition

Bending cell:

• Automatic sheet thickness adjustment
• Automatic tool clamping
• Blank scanner

Main manipulator:

• 3 servomotors for X,Y,Z
• 1 servo motor for lower rotary axis + separate drive for rotary axis
• Double sheet detection

Tool changer:

• 3 servomotors for X,Y,Z
• 1 pneum. Swivel drive for rotary axis
• Tool gripper
• Tool magazine on 2 levels
• Automatic tool clamping in the tool magazine

Cladding:

• Bending cell front and rear

Movable control panel:

• 18 Touch & More control unit

Pallet station:

• Roller conveyors and heavy-duty chain conveyors
• 1 space for new pallets (parts that are being processed)
• 1 space for “pallet in process”
• 2 spaces for finished pallets (empty or with remaining quantity)

Additional equipment:

• Intelligent charging robot
• Combined camera-scanner system
• Analysis software
• Transfer table, Sauerfeld (52x9mm) suction cup series (7x20mm)
• Conveyor curve belt with 6 connection stations
• Cladding finished part output
• Complete tool set
• RAS CAM-Office software incl. SolidWorks license and maintenance contract for 2 years

This high-quality used RAS MiniBendCenter 79.05 offers you proven quality at an attractive price and is available directly from the manufacturer. It is a fully automatic bending center specifically designed for the efficient processing of small parts. It comes with a manufacturer’s warranty, maintenance included, and the latest software version. With advanced technology such as automatic sheet thickness adjustment, an intelligent loading robot, and a powerful control system, it optimizes your production and reduces costs. Benefit from high flexibility and fast amortization through automated processes and versatile configuration.
