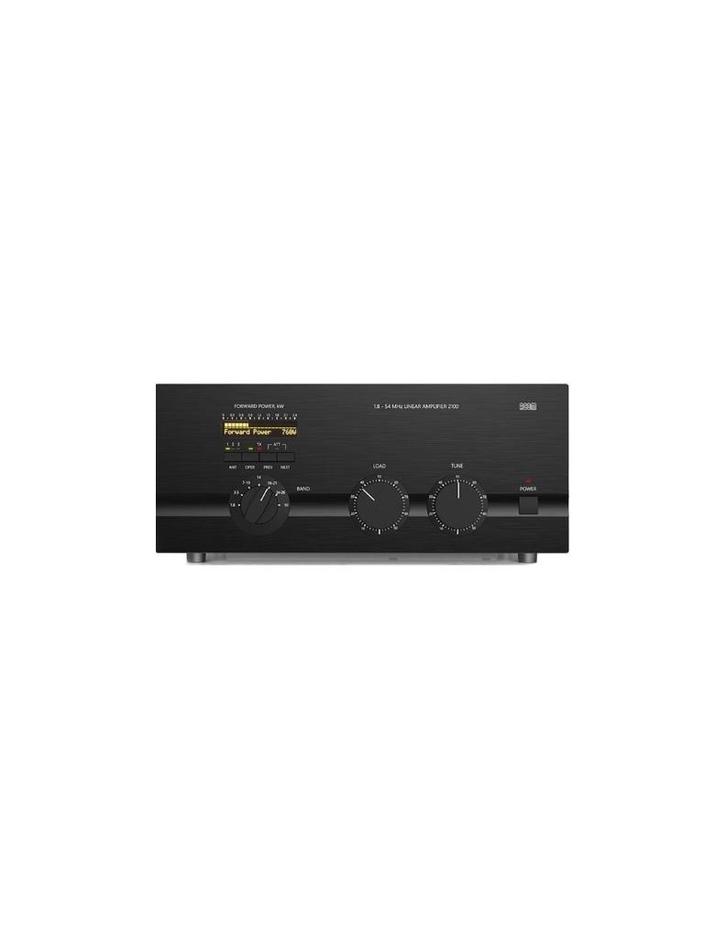

Acom 2100 HF +6m Model 2025
€ 4.350,00
Ophalen
3561sinds 7 jul. '24, 11:08
Kenmerken
ConditieNieuw
TypeZender en Ontvanger
Beschrijving
NIEUWE PRIJS 2025
LEVERTIJD 1 WEEK
Frequency Coverage
Power Output
Intermodulation Distortion
Hum and noise
Harmonic Output Suppression
Input and Output Impedances
RF Gain
Mains Power Supply Voltage
Mains Power Consumption
Safety and Electromagnetic Compatibility
Size & Weight (operating, excluding connected cables)
Shipping Size & Weight
Operating environments
SPECIALE AANBIEDING GB ANTENNES 35 JAAR : Kontact eerst GB voor ophalen
LEVERTIJD 1 WEEK
Frequency Coverage
- All amateur bands from 1.8 through 54 MHz:
- 1.800 - 2.000 MHz (160 m band)
- 3.500 - 4.000 MHz (80 m band)
- 7.000 - 7.300 MHz (40 m band)
- 10.100 - 10.150 MHz (30 m band)
- 14.000 - 14.350 MHz (20 m band)
- 18.068 - 18.168 MHz (17 m band)
- 21.000 - 21.450 MHz (15 m band)
- 24.890 - 24.990 MHz (12 m band)
- 27.000 - 27.999 MHz (11 m band)
- 28.000 - 29.700 MHz (10 m band)
- 50.000 - 54.000 MHz (6 m band)*
- geen betaling via marktplaats
- (*) Please, refer the applicable regional band plans and laws for specific allocations and limitations;
- In specific business cases, extensions or changes of the frequency coverage can be discussed, but this must be agreed upon before ordering. In any case, this is not the producer's obligation and can not be against local rules and laws.
Power Output
- 1500 W PEP or continuous carrier, no mode limit; With 4CX1000A Tube
Intermodulation Distortion
- Better than 32 dB below rated output;
Hum and noise
- Better than 40 dB below rated output;
Harmonic Output Suppression
- 1.8-29.7 MHz - better than 50 dB below rated output;
- 50-54 MHz - better than 66 dB below rated output;
Input and Output Impedances
- Nominal value: 50 Ohm unbalanced, UHF (SO-239A) type connectors;
- Input circuit: broadband, SWR less than 1.3:1, 1.8-54 MHz continuously (no tunings, no switching);
- Bypass path SWR less than 1.1:1, 1.8-54 MHz continuously;
- Output (antenna) impedance matching capability: SWR up to 3:1 or higher at reduced output levels;
RF Gain
- 13 dB typically, frequency response less than 1 dB (50-85 W drive power for rated output);
Mains Power Supply Voltage
- 85-132 VAC / 170-264 VAC (100, 110, 120, 200, 210, 220, 230 & 240 V nominal taps, +10% -15% tolerance), 50-60 Hz, Single phase;
Mains Power Consumption
- 3500 VA at rated output;
Safety and Electromagnetic Compatibility
- Complies with CE safety and electromagnetic compatibility requirements, as well as with the US Federal Communications Commission (FCC) regulations;
Size & Weight (operating, excluding connected cables)
- WxDxH: 445x375x205 mm, 29.3 kg (17.6x14.8x8.1 inches, 64.6 lbs.);
Shipping Size & Weight
- Amplifier carton, WxDxH: Approx. 610x490x380 mm, 17.0 kg (24.1x19.3x15.0 inches, 37.5 lbs.);
- Transformer carton, WxDxH: Approx. 330x390x370 mm, 16.5 kg (13.0x15.4x14.6 inches, 36.4 lbs.);
- Please, contact us for shipment details;
Operating environments
- Temperature range: 0 to +50 degrees Celsius (32 degrees F to 122 degrees F);
- Relative air humidity: up to 95% @ +35 degrees Celsius (95 degrees F);
- Height above sea level: up to 3050 m (10000 ft) without output deterioration.
SPECIALE AANBIEDING GB ANTENNES 35 JAAR : Kontact eerst GB voor ophalen
