CO2 | temperatuur | vochtsensor, PoM voeding

€ 209,40

70sinds 30 dec. '24, 13:09

Kenmerken

ConditieNieuw

Beschrijving

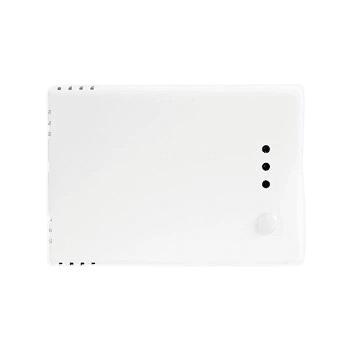

This version of the multifunctional room sensor measures temperature, humidity, CO2 and ambient light. It has an RJ45 connector over which both data and power are distributed. But because there is no digital-to-analog (D/A) conversion, it does not have the classic terminal blocks. And therefore also no analog output signal. This makes it a good buy. As standard, it works together with the RTVS position controller, which in turn can switch your AC fan to the right speed. And with the right firmware, it can be combined with Modbus fans. But this sensor is also the ideal choice as a building block of a Sentera PoM Modbus network.

Indoor air quality based on temperature, humidity and CO2
Controlling indoor air quality is not easy. You would like the sensor to take everything into account. Well, this sensor from Sentera can register various measured values. Like all recent Sentera room sensors, it is equipped with a built-in temperature and relative humidity sensor. In addition, it has a built-in NDIR CO2 sensor module. And for each of these measured values, as well as for the dew point and the light intensity, it has a separate Modbus register available. Your building management system or our SenteraWeb cloud service can use these values to calculate control algorithms, send notifications, etc.
POM power supply
This sensor is available in different versions depending on the required power supply. The power supply and data of this version are via an RJ45 connection. There is no analogue output. This makes this sensor easy to connect and inexpensive to purchase. Ideal as part of a network.Additional light sensor
The Sentera room sensors are already equipped with a light sensor that measures the ambient light. You can save and retrieve the measured values. And in later, or existing Modbus-compatible, applications you will even be able to adapt the algorithm as a function of the ambient light .Permanent visual control
Thanks to the integrated and dimmable LEDs, you can see at a glance whether the measured value is acceptable, or whether it is in the warning zone or even in the danger zone . Not every situation is the same, so you determine the values at which the LEDs change colour.Smart constructionThe RSxxx series are suitable for surface mounting. But in a smart way. The mounting is designed in such a way that it fits perfectly over a standard 68 mm flush-mounting box. And the cable passage is at the back, so you can work perfectly with flush-mounted pipes.Adjustable range per measured value
For both temperature, relative humidity and CO2 you can determine the range within which the output signal moves proportionally. This signal can then be used as a signal input for an air handling unit or controller. But if you simply want to control proportionally, it is perfectly possible to directly control an EC motor or valve drive with it.
