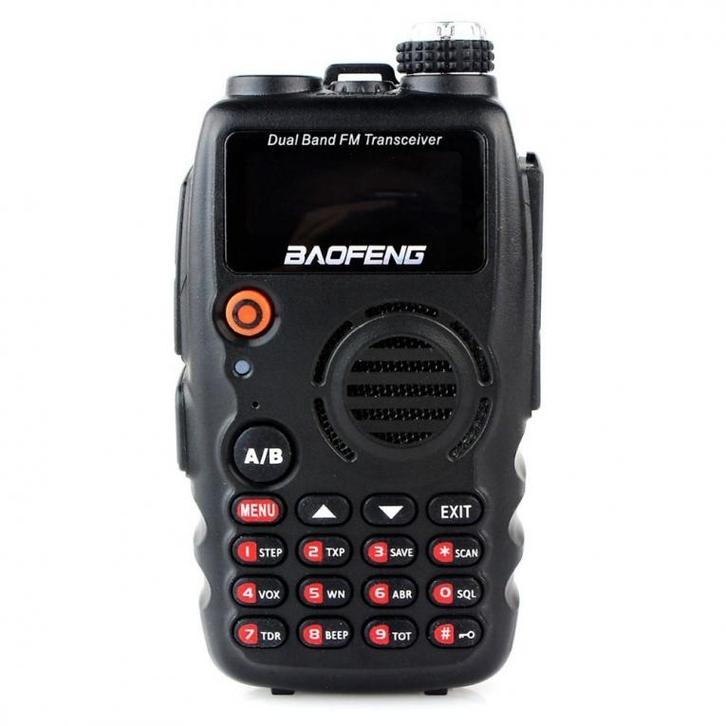

Walkie Talkie BaoFeng A52

Deze portofoon is uiterst geschikt voor professioneel gebruik. Door de dual band functie kunt u op de 70cm band en op de 2meter band zenden.
Het frequentiebereik is 136-174MHz en 400-480MHz.

• Dual-band handheld transceiver with display function menu on the display “LCD”
• DTMF encoded
• Lithium-ion battery with high capacity
• Incorporates 105 codes “DCS” and 50 privacy codes “CTCSS” programmable
• Function “VOX” (voice operated transmission)
• Alarm function
• Up to 128 memory channels
• Broadband (wide) / Narrowband (narrow), selectable
• High power / low (5W/1W)
• Display illumination and programmable
• Function “beep” on the
• Dual watch/dual
• Selectable frequency step 2.5/5/6.25/10/12.5/Function “OFFSET” (frequency offset for repeater access)
• Battery saving function “SAVE”
• Timer transmission “TOT” programmable
• Selecting the Scan Mode
• Function Busy Channel Lock “BCLO”
• Built-in RX CTCSS/DCS scan
• Built-in LED flashlight
• Programmable by PC
• Level threshold “Squelch” adjustable from 0 to 9Crossband reception
• Tone end of transmission
• Built-in key lock

Frequency Range: VHF 136-174 MHz (Rx/Tx). UHF 400-480MHz (Rx/Tx);
Memory channels: Up to 128 channels
Frequency stability: 2.5ppm
Frequency step: 2.5KHz/5KHz/6.25KHz/10KHz/12.5KHz/25KHz
Antenna impedance: 50Ω
Operating temperature: -20°C to +60°C
Supply voltage: Rechargeable Lithium-ion 7.4V/1800mAh
Consumption in standby: ≤ 75mA
Consumption in reception: 380mA
Consumption in transmission: ≤ 1.4A
Mode of Operation: Simple or semi-duplex
Duty cycle: 03/03/54 min (Rx/Tx/Standby)
Dimension: 110x60x32 mm
Weight: 205g (included battery+ antenna)
Transmitter
RF power: 4W/1W
Type of modulation: FM
Emission class: 16kΦF3E / 11kΦF3E (W/N)
Maximum deviation: ≤ ±5kHz / ≤ ±2.5kHz (W/N)
Spurious emissions: Receiver
Receiver sensitivity: 0.2uV (at 12dB SINAD)
Intermodulation: 60dB
Audio Output: 1000mW
Adjacent channel selectivity: 65/60dB

Contains:
1x BAOFENG A52 FM Two-Way Radio
1x Battery
1x Antenne
1x Power Adapter
1x Battery Charger
1x hoofdtelefoon
1x Hand Strap
1x Handleiding
