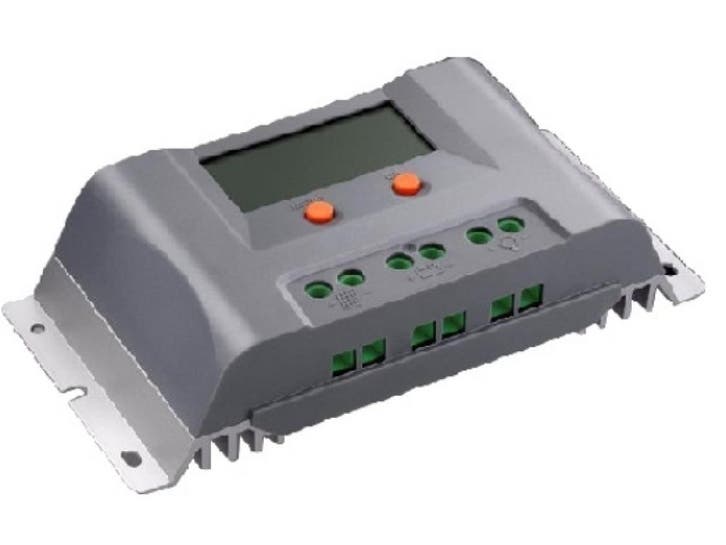

MPPT LITHIUM Laadstroomregelaar 12 volt 10Ah

Specification: SX1050-EU Li                 Battery Parameters Max Charging Current 10A System Voltage 12V MPPT Charing Voltage <14.6V Charging target voltage 14.6V Charing reconnect voltage 14.2V Low Volt.Disconnect 10~12V(default:10.6V) Reconnect Voltage 10.6~12.6V(default:11.2V) Max volt on Bat. Terminal 20V Battery Type Lithium       Panel Parameters Max volt on PV(-20)   *1 45V Max volt on PV(25) 40V Max input power 130W Dusk/Dawn defect volt. 8.0V MPPT tracking range (Battery Voltage + 1.0V)~Voc*0.9 *2     Load Output current 10A USB interface 5V,2A Load mode Always on,Dusk to Down,Evening,Manual             System Parameters Max tracking efficiency >99.9% Max charge conversion 97.5% Dimensions(mm) 189*96*53 Weight 420g Self consumption 7mA Communication _ Grounding Common Negative Power terminals 8AWG(10mm²) Ambient temperature -20~+55 Storage temperature -25~+80 Ambient humidity 0~100%RH Protection degree IP32 Max altitude 4000m
