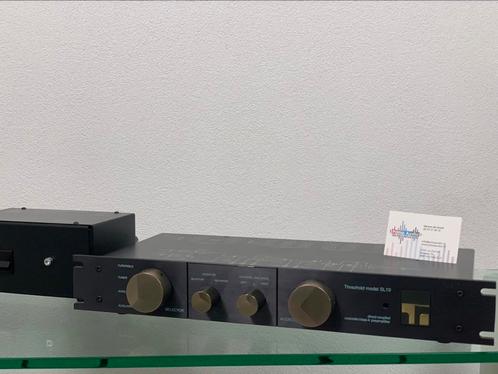

Threshold SL10 voorversterker

Fantastische high end voorversterker van Treshold, ingeruild in zeer goede staat.

The Threshold SL-10 is a remarkable preamplifier that set new standards during its time and remains a leading-edge component even today. Let’s delve into its features:

• Design and Build:
• The SL-10 is a fully cascode Class A preamp known for its exemplary construction.
• It follows the tradition of the legendary NS 10 preamp, which was the first design by Nelson Pass.
• The interior of the SL-10 reveals premium components, including a military-grade double-sided gold-plated circuit board.
• All connectors and switch contacts are gold plated.
• Rotating controls are environmentally sealed.
• The separate power supply employs Mallory computer-grade capacitors and provides immense reserve capability with quadruple decoupling from the audio circuits.

• Circuit and Performance:
• The SL-10 circuit features eight transistors per channel, directly coupled to the input and operated without feedback.
• It forms an active synthesis of a transformer while avoiding reactance effects that compromise transformer performance.
• The circuit’s accuracy eliminates the need for frequency compensation or corrective feedback, maintaining high levels of speed and phase integrity.
• The SL-10 is designed as a modular system, consisting of two interconnected components.
• An independent power supply module can be located at a distance from the audio module to prevent noise pickup.
• The reserve capability of the supply far exceeds the demands of the audio module.
• Dale and Corning metal film resistors are used throughout the discrete design.
• Audio level control is achieved through a Waters conductive plastic dual potentiometer.
• The chassis and cover are fabricated from sheet steel for maximum noise shielding.

• Specifications:
• Frequency response: 1Hz to 200kHz
• Total harmonic distortion: 0.01%
• Gain: 33dB (MM), 20dB (line)
• Signal-to-noise ratio: 82dB (line)
• Output: 3V (Pre out), 12V (Pre out Max)

The Threshold SL-10 remains a testament to advanced engineering concepts and provides uncompromised performance when paired with high-caliber associated equipment
