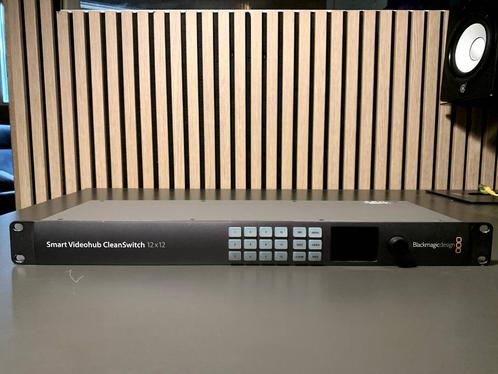

Blackmagic Design Smart Video Hub CleanSwitch 12

€ 1.300,00
Ophalen of Verzenden
Afhaalpunt voor € 4,95 of thuis voor € 5,95
Thuisbezorgd voor € 6,95
Thuisbezorgd door Brenger vanaf € 42,-
711sinds 6 apr. '25, 09:30
Deel via
of

Kenmerken

ConditieZo goed als nieuw
TypeVideo

Beschrijving

I am selling my Blackmagic Design Smart Video Hub CleanSwitch 12x12 after closing my podcast studio. Works as new, has only been in one rack, comes with power cables.

Compact 6G-SDI router
• With built-in Re-Synchronizer on all inputs it enables clean switching between all video sources of the same video standard
• Can be used as a 12-way Re-Synchronizer for automatic Re-Timing of SDI feeds
• Supports 12 inputs and 12 outputs in virtually all SD, HD and Ultra HD video formats
• Supports multiple formats on the same Router simultaneously and switches cleanly between different formats matching the Reference Frame Rate when switching between the same video standard
• Including Front Panel Button and Knob Routing
• Operating Systems: Mac 10.15 Catalina, Mac 11.1 Big Sur or later, Windows 10 64-bit
• Power supply: 100 - 240 V AC input (IEC power cord not included)
• Dimensions (W x D x H): 482 (19") x 160 x 44 (1U) mm
• Weight: 1.88 kg

Technical data:
Connections:
• SDI Video inputs: 12 x 10-bit SD-SDI, HD-SDI and 6G-SDI
• SDI Video outputs: 12 x 10-bit SD-SDI, HD-SDI and 6G-SDI
• SDI Rates: 270Mb, 1.5G, 3G, 6G
• Re-Sync of the video inputs on all 12 inputs for clean switching
• SDI Reclocking on all SDI outputs
• Reference input: Tri-Sync or Black Burst
• Connection to the control panel: Ethernet
• Serial control port: RJ-6 RS-422
• Multi-Rate support
• Auto detect SD, HD or 6G-SDI
• Simultaneous Routing of 4K, HD and SD Video
• Updates: USB
• Ethernet: Router configuration via front panel LCD or RJ45 Ethernet
• RS-422 Router Control: 1 x Router Control Input

Standards:
• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59, 94, 1080i60
• 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
• 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, ITU-R BT.656 and ITU-R BT.601
• SDI Video Sampling: 4:2:2 and 4:4:4
• SDI Audio Sampling: TV standard Sampling Rate of 48 kHz and 24 bit
• SDI color precision: 10 bit 4:2:2 and 4:4:4
• SDI Color Space: YUV or RGB
• SDI Auto Switching: Automatically selects between SD-SDI, HD-SDI and 6G-SDI on each input
• SDI Metadata Support: Identifying Video Signal According to SMPTE 352M

Operation:
• Built-in control panel: 12 buttons for local control of the Videohub with 6 buttons and a scroll wheel for the menu
• 2.2-inch color display
• External control panel: incl. Blackmagic Videohub software control panel for Mac and Windows
• Supports Blackmagic Smart Control and Blackmagic Master Control hardware panels, incl. Blackmagic Videohub SDK and Ethernet Videohub Control Protocol

Software:
• Software control: Router control for Windows and Mac included for free
• Internal software upgrade via included updater application
Advertentienummer: m2254100811
